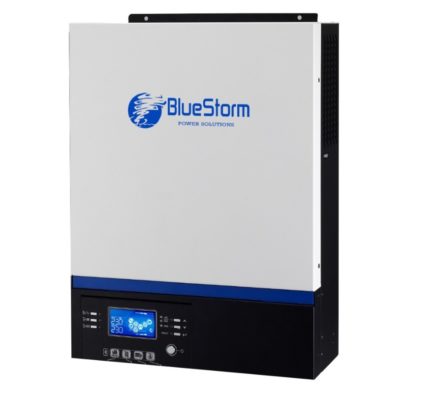

BS-SOLAR INVERTER 5KW-MPPT
975,000 د.ع
Key Features
- Detachable LCD control module with various communication options.
- Built-in Bluetooth for mobile monitoring (Android app available).
- Supports USB On-the-Go function.
- Reserved communication port (RS485, CAN-BUS, or RS232) for BMS.
- Battery independent design.
- Battery equalization extends lifecycle.
- User-friendly LCD operation.
- Replaceable fan design for ease of maintenance.
الميزات الرئيسية
- وحدة تحكم LCD قابلة للفصل مع خيارات اتصال متعددة.
- بلوتوث مدمج لمراقبة الهاتف المحمول (تطبيق أندرويد متاح).
- يدعم وظيفة USB On-the-Go.
- منفذ اتصال مخصص (RS485، CAN-BUS، أو RS232) لنظام إدارة البطارية (BMS).
- تصميم مستقل عن البطارية.
- مساواة البطارية لتمديد عمرها الافتراضي.
- تشغيل LCD سهل الاستخدام.
- تصميم مروحة قابلة للاستبدال لتسهيل الصيانة.
Out of stock
Specifications:
| MODEL | BS-SI III-5KW |
| Rated power | 5000VA/5000W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable voltage range | 170-280 VAC(For personal computers) 90-280 VAC (For home appliances) |
| frequency range | 50Hz/60Hz (Auto sensing) |
| OUTPUT | |
| AC voltage regulation(ba.mode) | 230 VAC ± 5% |
| Surge power | 10000 VA |
| Efficiency peak | 90%~93% |
| Transfer TIME | 10ms (For personal computers) 20ms (For home appliances) |
| Wave form | Pure sine wave |
| BATTERY | |
| Baery voltage | 48 VDC |
| floating charge voltage | 54 VDC |
| Overcharge protiction | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar charger type | MPPT |
| Maximum PV array power | 5000 W |
| MPPT range @operating voltage | 120~450 VDC |
| Maximum PV array open circuit voltage | 500 VDC |
| Maximum solar charge current | 100 A |
| Maximum AC charge current | 100 A |
| Maximum charge current | 100 A |
| PHYSICAL | |
| Dimension , D x W x H (mm) | 115 x 300 x 400 |
| Net wight (Kgs) | 10 |
| Communication interface | USB/RS232/RS485/Bluetooth/Dry-contact |
| OPERATING ENVIROMENT | |
| Humidity | 5% to 95% Relative humidity (Non-condensing) |
| Operating temperature | – 10°C to 50°C |
| Storage temperature | – 15°C to 60°C |
