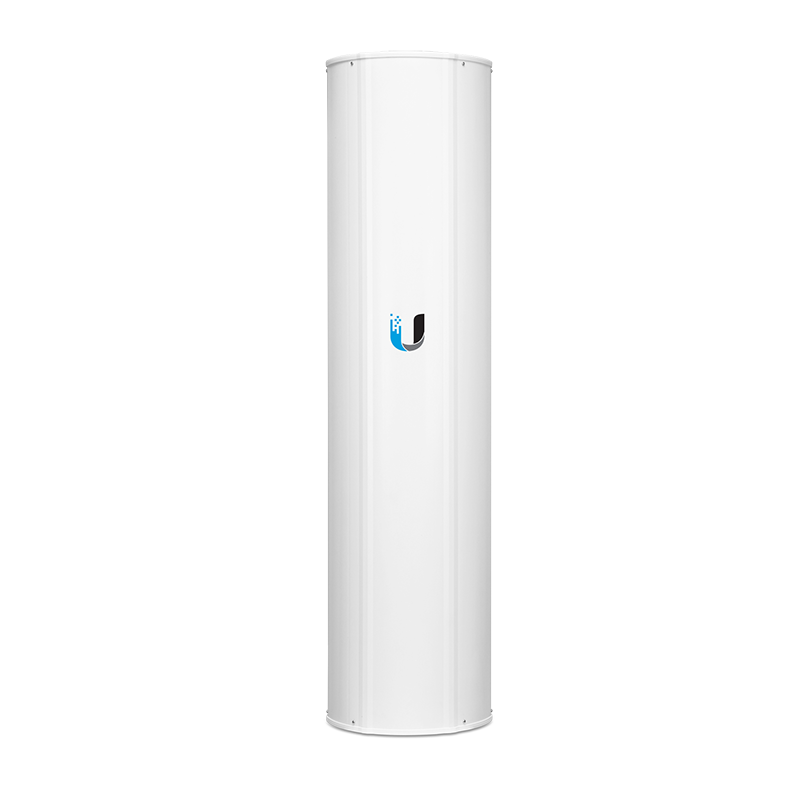

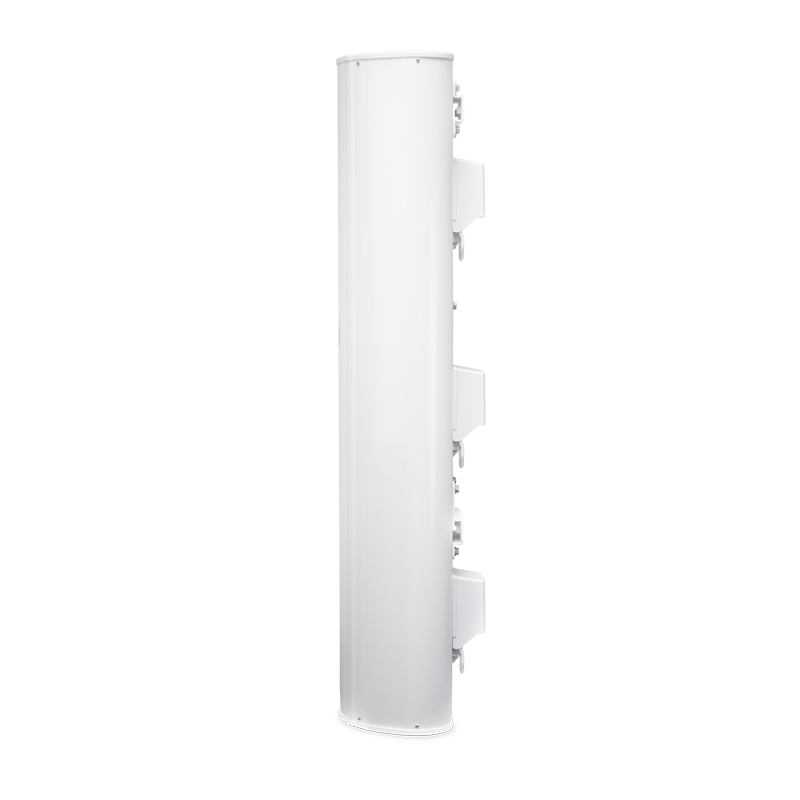

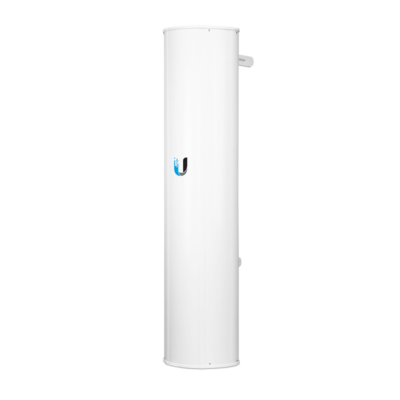

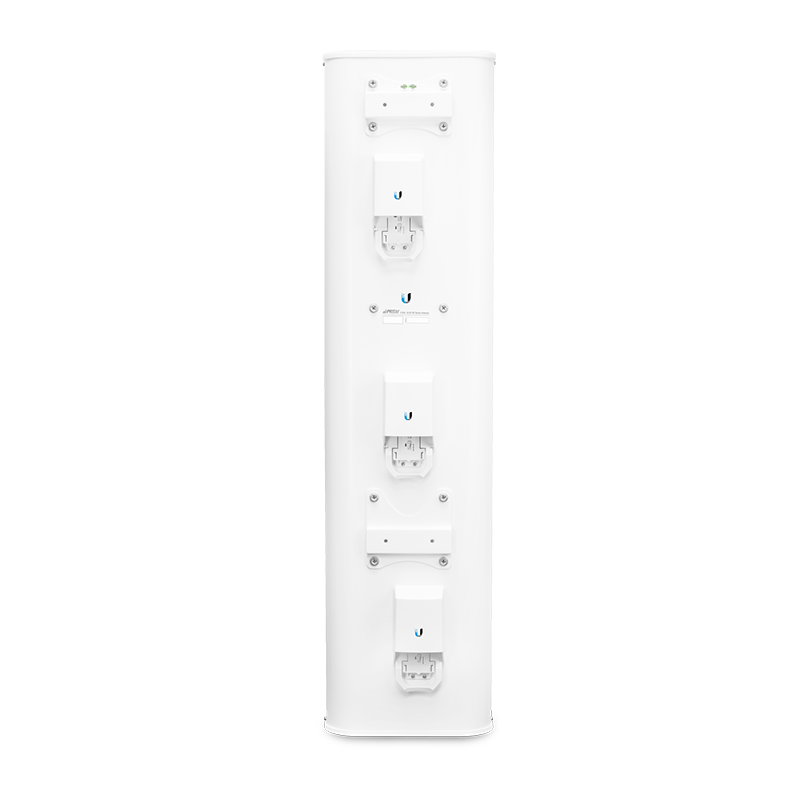

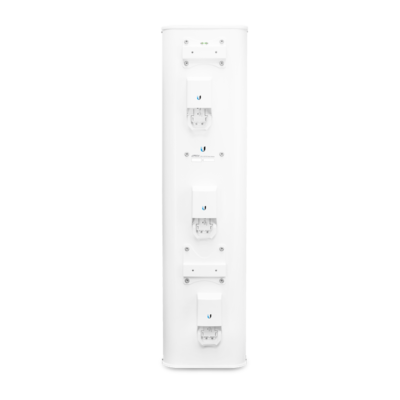

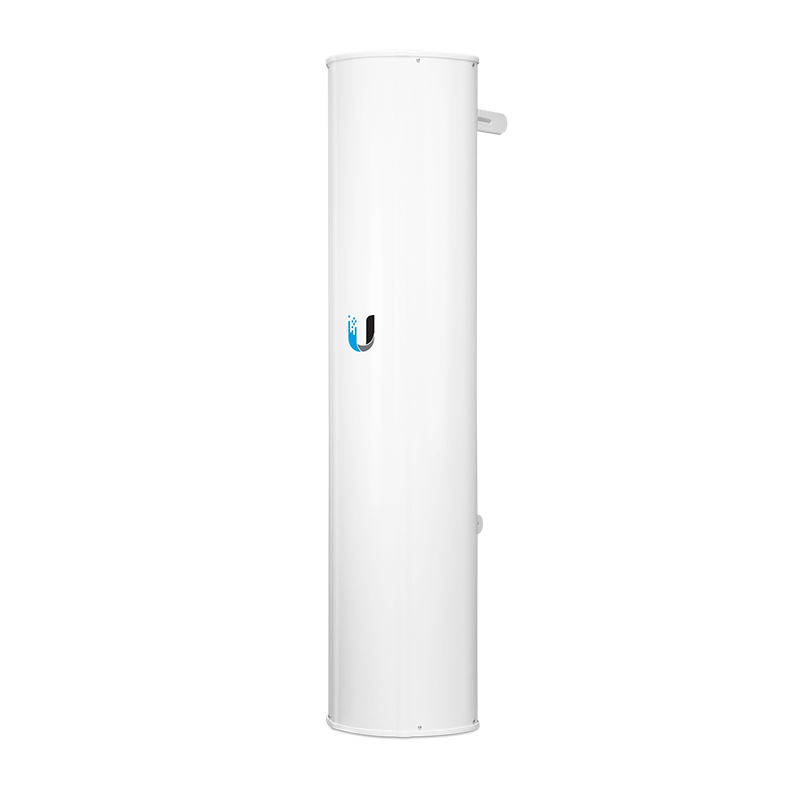

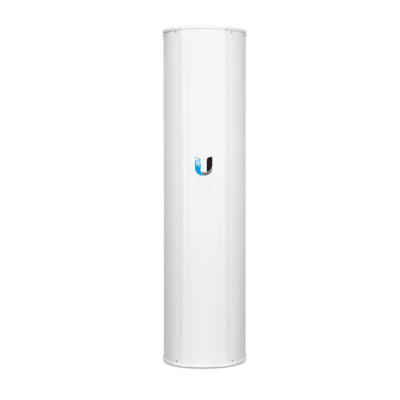

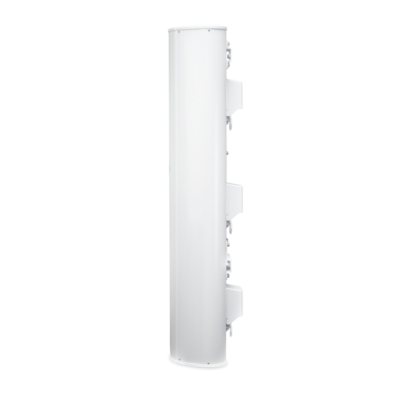

airPrism AC Sector Antenna 5 GHz, 90°, HD

562,000 د.ع

5 GHz 3×30° HD Sector Antenna

Powerful performance for high-density areas.
3 × 30° beamwidth coverage in a multipoint network.
Efficient footprint for reduced tower costs.

أداء قوي للمناطق ذات الكثافة العالية.
تغطية بثلاث زوايا عرض 30° في شبكة متعددة النقاط.
تصميم مدمج يقلل من تكاليف الأبراج.

Out of stock

Categories: Ubiquiti, Ubiquiti WIRELESS PRODUCTS, Ubiquiti-Wireless-Antenna Tags: 5 GHz, Antenna, Sector, UI

Antenna Characteristics

Dimensions* 322.6 x 201.5 x 1300 mm
(12.7 x 7.93 x 51.18″)
Weight** 13.1 kg
(28.9 lb)Frequency Range 5.15 – 5.85 GHz
Gain 22 dBi
HPOL Beamwidth 3 x 30° (6 dB)
VPOL Beamwidth 3 x 30° (6 dB)

Electrical Beamwidth 8°
Electrical Downtilt 2°
Max. VSWR 1.75:1
Polarization Dual-Linear
Cross-Polarization Isolation 30 dB Min.
Interfaces (6) RP-SMA Connectors (Weatherproof )
Compatible Radio Rocket5ac Prism, model R5AC-PRISM
Wind Loading 534 N @ 200 km/h (120 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Mounting Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
ETSI Specification EN 302 326 DN2
Certifications CE, FCC, IC
