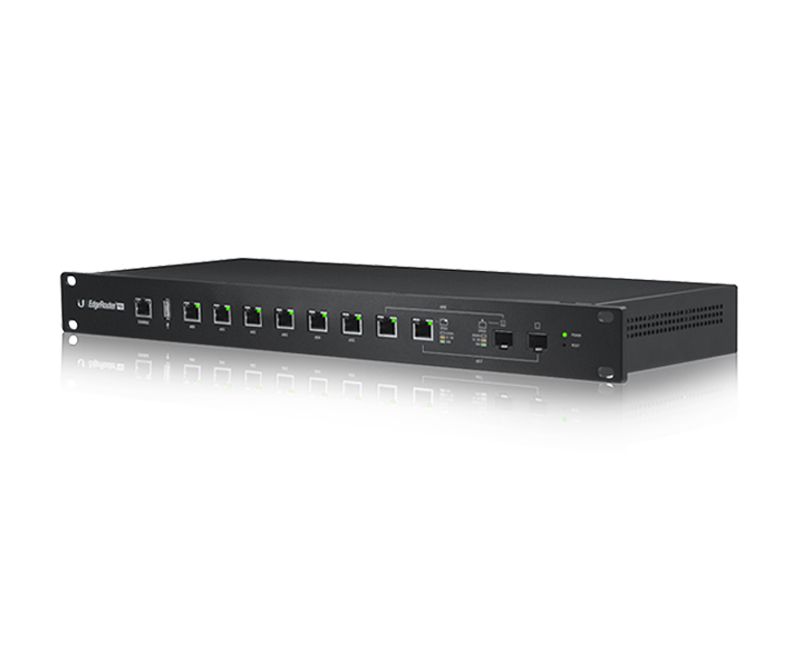

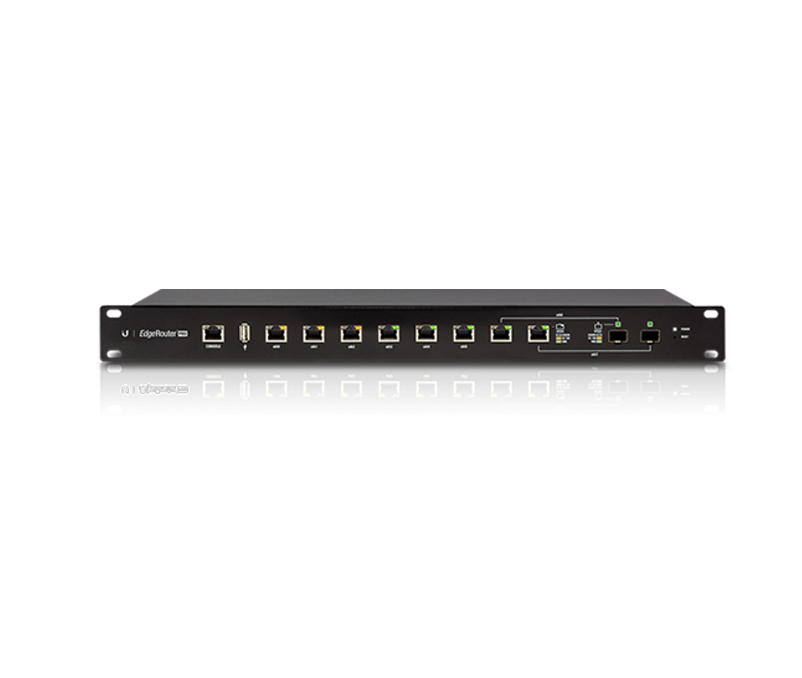

EdgeRouter Pro 8

Specifications

Interface Description
Console
RJ45 serial console port for Command
Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also
known as a rollover cable, to connect the
Console port to your computer. (If your
computer does not have a DB9 port, then
you will also need a DB9 adapter.) Then
configure the following settings as needed:
• Baud rate 115200
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE

USB Reserved for future use.
RJ45(eth0-eth7)
RJ45 ports support 10/100/1000 Ethernet
connections. RJ45 port eth6 or eth7 is
active only if the corresponding SFP port
is empty.
SFP
(eth6-eth7)
SFP ports are hot-swappable and support
100 Mbps or Gigabit fiber SFP modules. If
an SFP module is plugged in, then the SFP
port is active, and the corresponding RJ45
port is deactivated.
