UniFi U7 Pro Outdoor
The UniFi U7 Pro Outdoor is a high-performance WiFi 7 outdoor access point with tri-band 2.4 GHz, 5 GHz, and 6 GHz wireless. It features an integrated directional antenna, supports 300+ clients, provides up to 5.8 Gbps on 6 GHz, and has a 2.5 GbE uplink. It is designed for outdoor deployments such as campuses, public spaces, and large outdoor areas.
جهاز UniFi U7 Pro Outdoor هو نقطة وصول خارجية عالية الأداء بتقنية WiFi 7، وتدعم ثلاثة نطاقات تردد: 2.4 GHz و5 GHz و6 GHz. يحتوي على هوائي اتجاهي مدمج، ويدعم أكثر من 300 جهاز عميل، وتصل السرعة القصوى في نطاق 6 GHz إلى 5.8 Gbps، مع منفذ اتصال 2.5 GbE. وهو مناسب للاستخدامات الخارجية مثل الجامعات والمساحات العامة
| Specification | Details |
|---|---|
| Product Name | UniFi U7 Pro Outdoor |
| Model | U7-Pro-Outdoor |
| Brand | Ubiquiti |
| Product Type | Outdoor WiFi 7 Access Point |
| WiFi Standard | WiFi 7 (802.11be) |
| Frequency Bands | 2.4 / 5 / 6 GHz |
| Spatial Streams | 6 |
| Coverage Area | 465 m² (5,000 ft²) directional |
| Max. Clients | 300+ |
| 6 GHz Max. Data Rate | 5.8 Gbps |
| 5 GHz Max. Data Rate | 4.3 Gbps |
| 2.4 GHz Max. Data Rate | 688 Mbps |
| 6 GHz MIMO | 2 × 2 |
| 5 GHz MIMO | 2 × 2 |
| 2.4 GHz MIMO | 2 × 2 |
| 6 GHz Antenna Gain | 10 dBi directional |
| 5 GHz Antenna Gain | 11 dBi directional |
| 2.4 GHz Antenna Gain | 8 dBi directional |

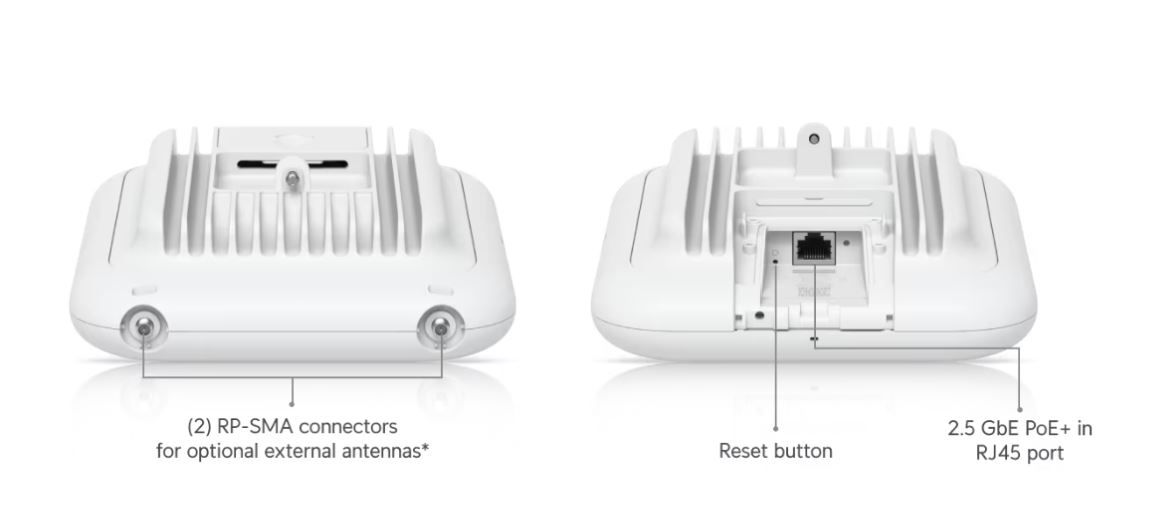

| Uplink | 1 × 2.5 GbE RJ45 |
| Power Method | PoE+ |
| Max. Power Consumption | 21W |
| Weatherproofing | IPX6 / IP67 with cable-gland door kit |

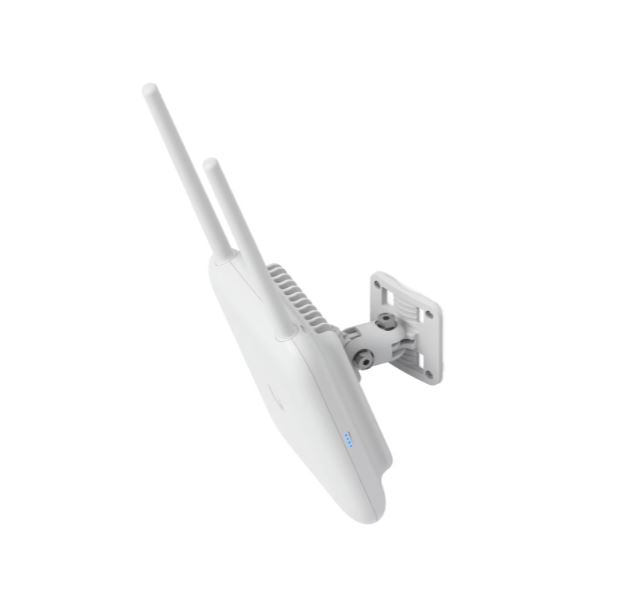

| Mounting | Wall / Pole |

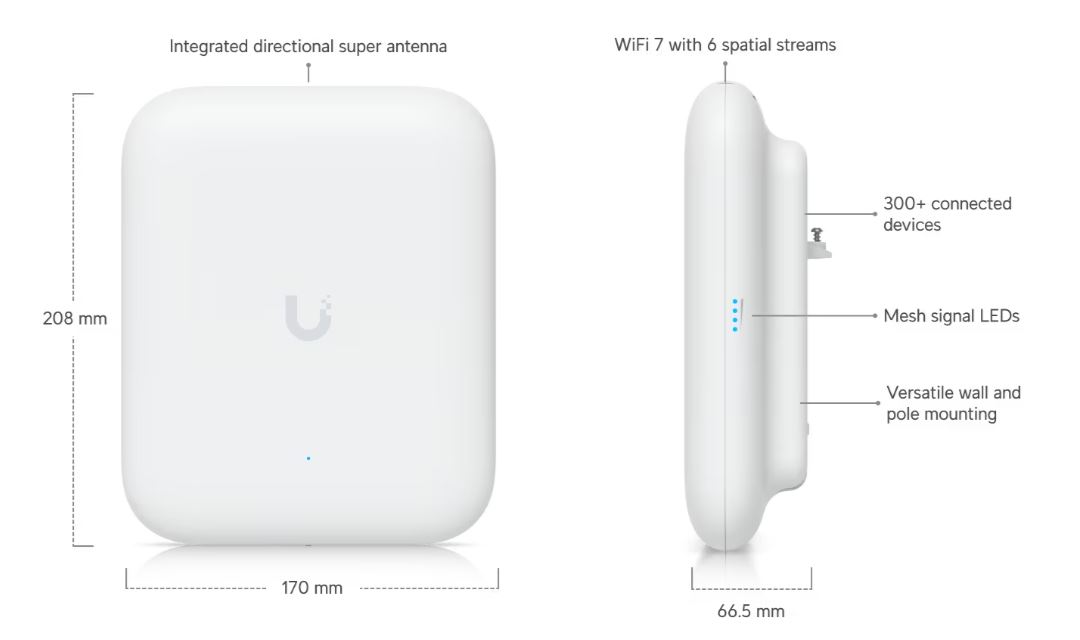

| Dimensions | 170 × 208 × 66.5 mm |
| Weight | 1.2 kg |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 5–95% non-condensing |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| Fast Roaming | 802.11r |
| NDAA Compliant | Yes |
